Infratech Dual Duplex ON/OFF In Wall Switch with Weatherproof Cover for In Wall Installation

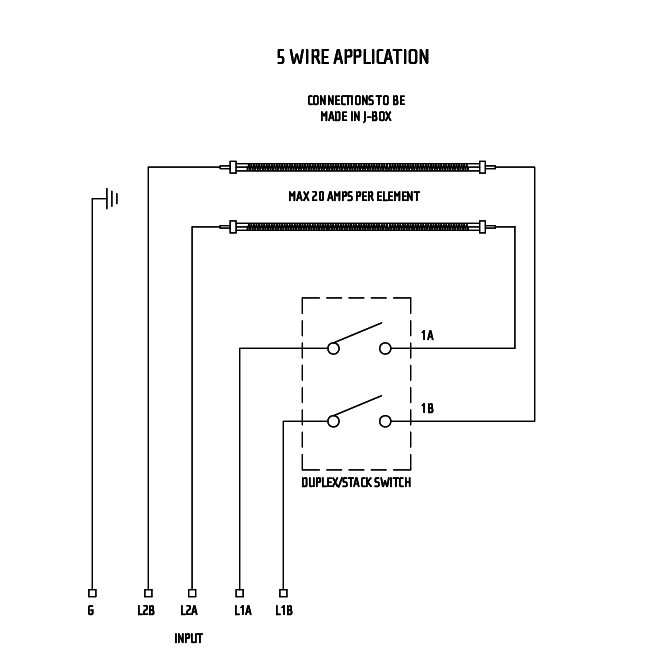

Infratech’s ON/OFF Switch 14 4315  can be used to control your dual element CD Series or WD Series heater by simple controlling on/off each element independently, giving you a High/Low and ON/OFF setting. Use this switch to control two dual element heaters. This switch comes with a weatherproof cover, stainless steel face plate and gang box for in-wall exposed exterior locations.

Infratech is a UL 508 Listed Control Manufacturer with a proven track record in engineering, design, and manufacturing.

Select the right controls: . See all !

For more information about the current lead time, email us at .

Infratech Dual Duplex ON/OFF Switch Video:

FEATURES:

• Compatible with all Infratech Dual Element Heaters
• Use this switch to control 2 CD/WD-Series heaters
• In-Wall Installation
• For Exposed Outdoor Areas
• Gang Box: 4 3/4" h x 4 3/4" w x 2 1/4" d
• SS Plate: 4 3/8" h x 4 3/8" w

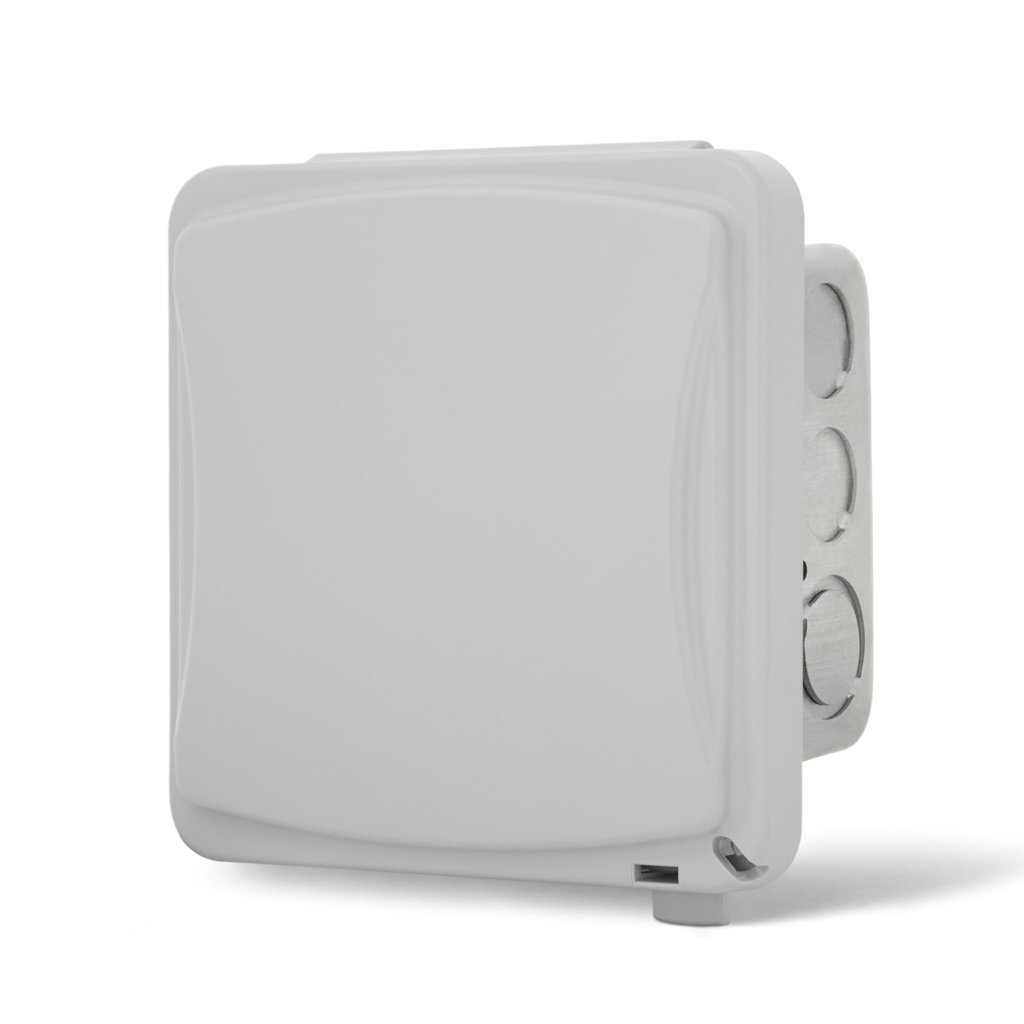

• Weatherproof Cover: 5 1/2" h x 5 1/2" w x 1 1/4" d (Tab on covers extends 1/4")
• (2) Two Single Pole Single Throw (DPST) Switches, total of 4
• Range: 120/277 VAC
• Recommended not to exceed:
  • 208/220 VAC = 3000 Watts Max per Switch
  • 240/277 VAC = 4000 Watt Max per Switch
• 20 Amps Max per Pole
• Made in the USA
• 3 Year Warranty
