Infratech INF Input In Wall Regulator with Weatherproof Cover

Infratech INF Input In Wall Regulator is a low cost control option for single element heaters up to 3000 watts (maximum 15 amps). Designed to be installed in-wall in exterior outdoor areas. Includes gang box, stainless steel face plate and weatherproof front cover. Available in 2 options: for 120 volt (item #14 4115 ) and for 240 volt applications (item #14 4215).

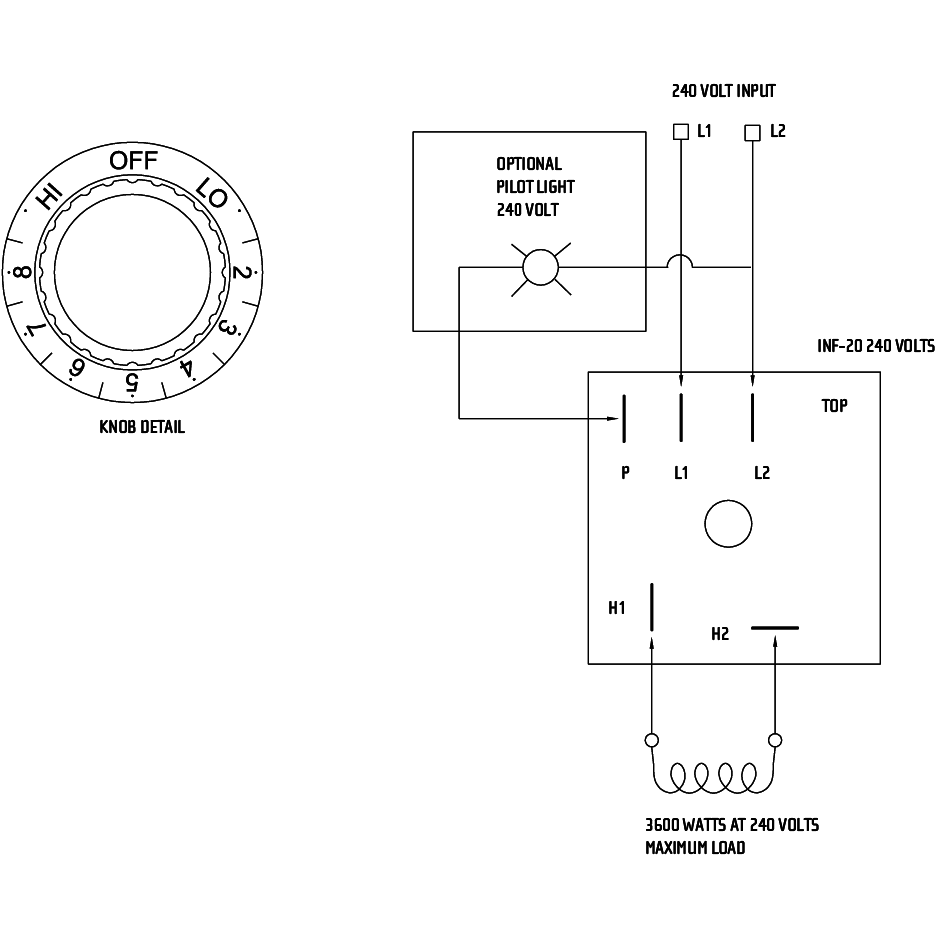

The INF input regulator is considered an "Infinite Switch". It operates with a bi-metal contact. It pulses the heater on and off as the internal contact heats up and cools down. It is considered a coarse form of control and is commonly used for electric heaters.

Infratech is a UL 508 Listed Control Manufacturer with a proven track record in engineering, design, and manufacturing.

Select the right controls: . See all !

For more information about the current lead time, email us at .

Infratech INF Input Regulator Videos:

FEATURES:

• Low cost control option for two single element heaters up to 3000 watts (maximum 15 amps)
• For Exterior Outdoor Areas
• Not a dimmer – the INF gently cycles the heater on and off at regular intervals when not on full power
• Each heater must have its own INF Input Regulator
• In-Wall Installation
• Gang Box: 4 3/4" h x 4 3/4" w x 2 1/4" d
• SS Plate: 4 3/8" h x 4 3/8" w

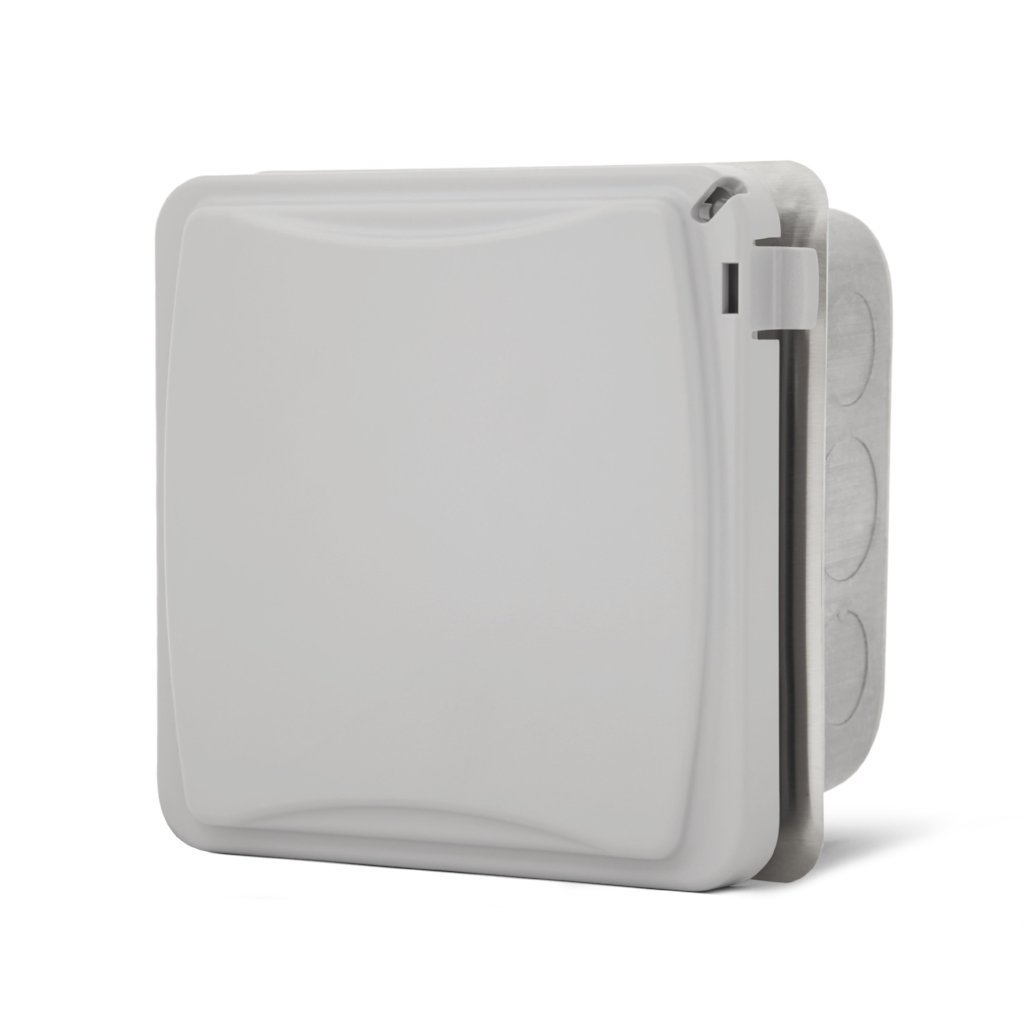

• Weatherproof Cover: 5 1/2" h x 5 1/2" w x 1 1/4" d (Tab on cover extends 1/4")
• 15 amp maximum load per switch
• #14-4115 for 120 volt
• #14-4215 for 240 volt
• Stainless Steel Face Plate
• UL Listed
• 3 Year Warranty
