Infratech Single Duplex ON/OFF Surface Mount Switch with Weatherproof Cover for Surface Mount Installation

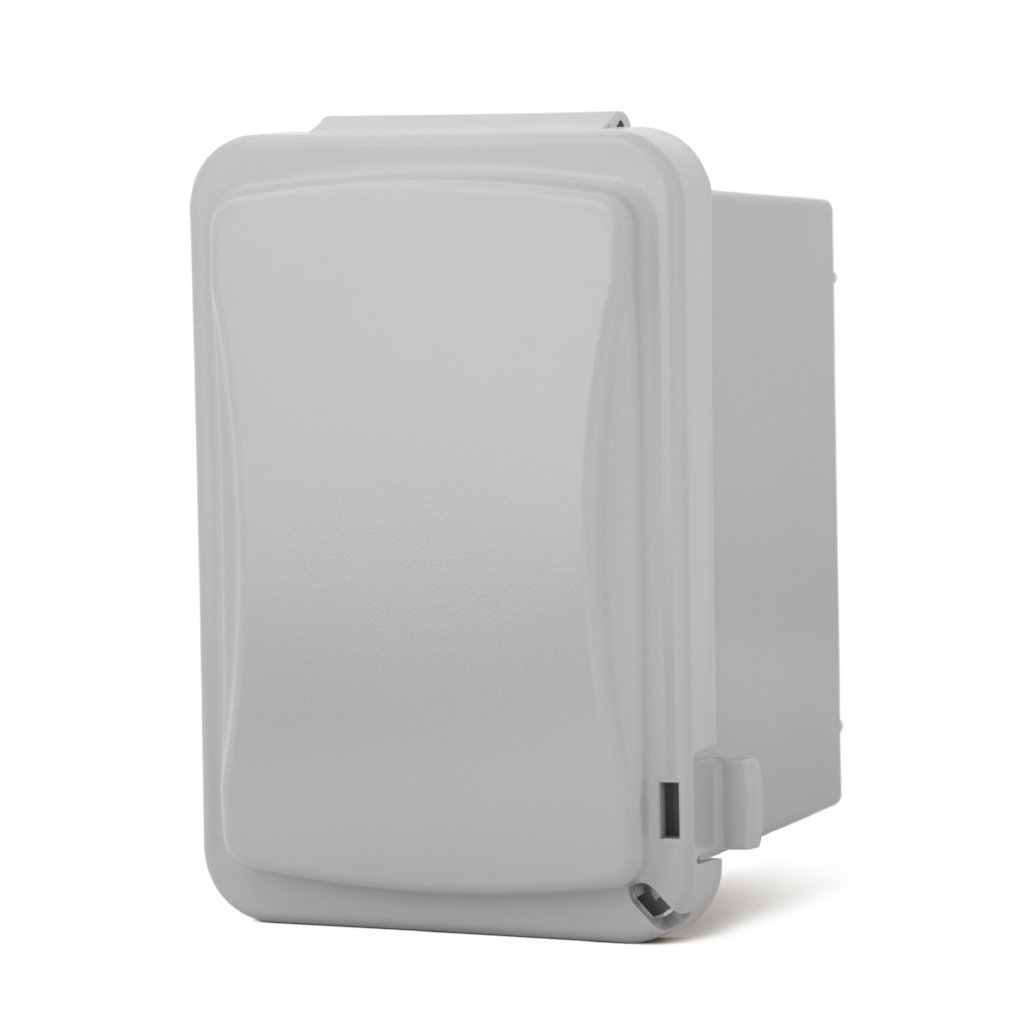

Infratech’s ON/OFF Switch 14 4320 can be used to control your dual WD Series heater by simple controlling on/off each element independently, giving you a High/Low and ON/OFF setting. This switch comes with a weatherproof cover, stainless steel face plate and gang box for surface mount exposed exterior locations.

Infratech is a UL 508 Listed Control Manufacturer with a proven track record in engineering, design, and manufacturing.

Select the right controls: . See all !

For more information about the current lead time, email us at .

Infratech Dual Duplex ON/OFF Switch Video:

FEATURES:

• Compatible with all Infratech Dual Element Heaters
• Surface Mount Installation
• For Exposed Outdoor Areas
• Weatherproof Box: 4 9/16" h x 2 3/4" w x 2" d
• SS Plate: 4 3/8" h x 2 5/8" w
• Weatherproof Cover: 5 1/2" h x 3 3/4" w x 2 3/4" d (Tab on covers extends 1/4")
• Threaded Knock Out: 1/2"
• Two Single Pole Single Throw (DPST) Switches
• Range: 120/277 VAC
• Recommended not to exceed:
  • 208/220 VAC = 3000 Watts Max per Switch
  • 240/277 VAC = 4000 Watt Max per Switch
• 20 Amps Max per Pole
• Made in the USA
• 3 Year Warranty
